dimensions & specs

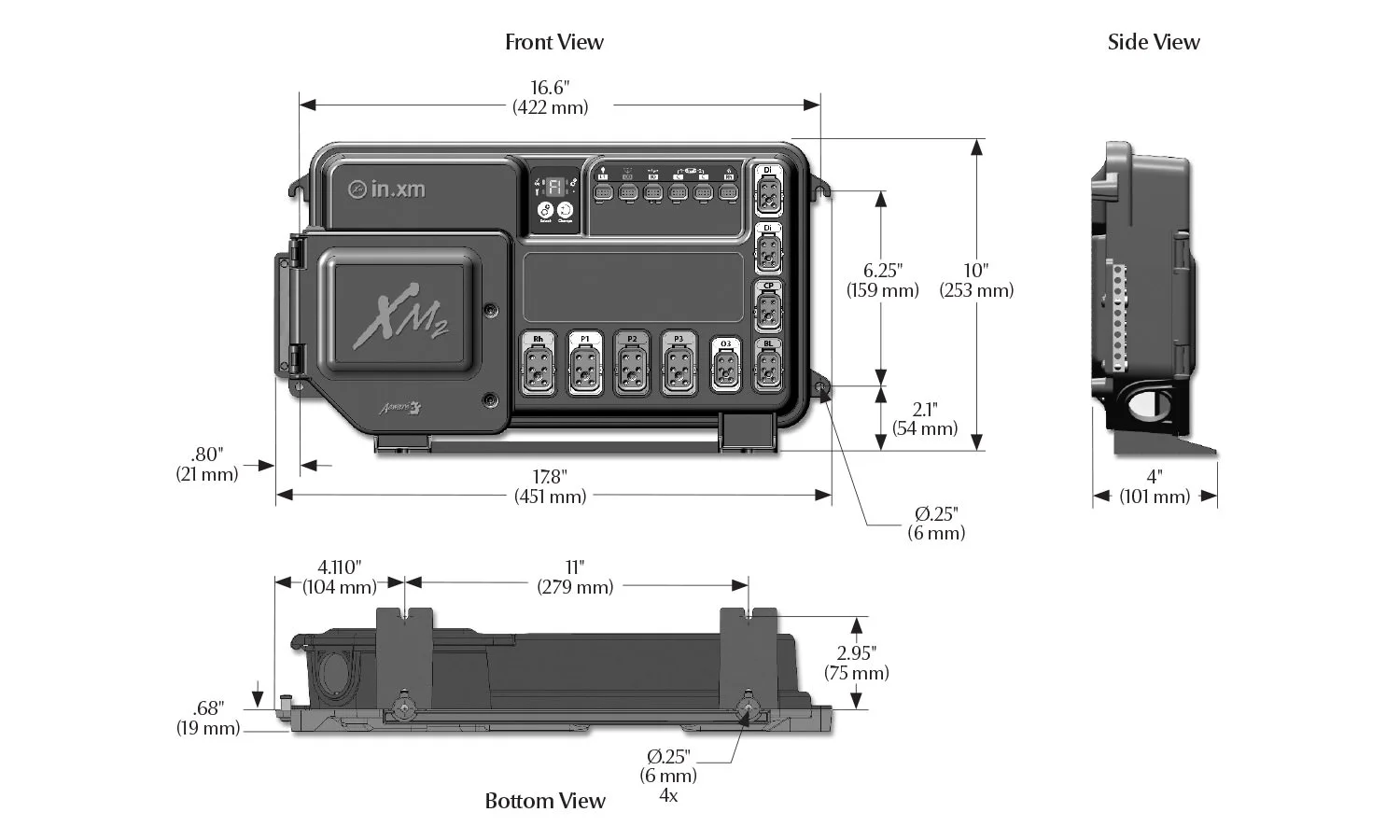

in.xm dimensions



in.xm specs




Environmental:

  • Operating temperature: 32˚F (0˚C) to 122˚F (50˚C)

  • Storage temperature: -13°F (-25°C) to 185°F (85°C)

  • Humidity: Up to 80% RH, non condensing

Mechanical:

  • Weight: 7.6 lb (3.4 kg)

  • Dimensions (W x H x D): 7-1/4" x 2" x 10-3/4" (185mm x 52mm x 275mm)





UL / CSA standards:

  • UL 1563 Fifth Ed.

  • CSA N° 22.2 - 218.1-M89



in.xm2 UL / CSA electrical specifications:

Input rating:

  • 120/240 VAC (2-phase required, with or without neutral) 48 A Max, 60Hz.

Input operation specification:

  • 240 VAC (-10% / + 5%)

in.therm rating:

  • Voltage: 2-phase, 240VAC

  • Current: 17 A maximum (4 kW heater)

  • Frequency: 60 Hz

  • Heater element: 17A resistive (240 VAC only)

  • Flow rate: Minimum of 18 GPM is required

Output Voltage Maximum current Typical device
output 1 240 v 20 FLA pump 1
output 2 240 v 15 FLA pump 2
output 3 120/240 v 15 FLA pump 3 or blower
output 4 120 / 240 v 6 FLA aux 1
output 5 120 / 240 v 6 FLA blower
output 6 120 / 240 v 6 FLA Circulation pump
output 7 120 / 240 v 6 FLA ozone generator
output 8 120 / 240 v 6 FLA audio/video device

Important:

  • 48 A absolute maximum, distributed on all outputs

  • 25 A maximum total for all 120 VAC loads

  • 20 A maximum total for OUT2 and OUT3 combined

  • 11 A maximum total for OUT4 to OUT8 combined

  • Maximum loads are determined by fusing restrictions and ambient temperature. In all output configurations,
    the total current output must never exceed input ratings.

L1 Light, 1 A / 10 VAC (-5%/+10%) @ 240 VAC / 60Hz
CO Communications port *
C1 Top side controller *
C2 Top side controller **
IO General purpose I/O port **
* C1 and CO: 125 mA max on 5 Volts.
** C2 and IO: 125 mA max on 5 Volts.

Important:

  • All low voltage accessories use + 5Vdc and/or on + 12 Vdc.

  • All low voltage accessories combined: 300 mA max, on + 12 Vdc.


TUV standards:

  • EN/IEC 60335 - 2 - 60: 2003/2002 - EN/IEC 60335 - 1: 2002/2001 (incl. Corr. & Am. up to 2008)

  • EN55014-1

  • EN55014-2

  • EN61000-3-2

  • EN61000-3-3



in.xm2.ce TUV electrical specifications:

Input rating:

  • 1-phase 230-240 VAC (all loads line to neutral)

  • 2-phase 230-240 VAC (all loads line to neutral)

  • 3-phase 230-240 VAC (all loads line to neutral)

  • 1 x 40 A maximum (Single-phase)

  • 2 x 20A maximum (Dual-phase)

  • 3 x 16A maximum (Three-phase)

  • Frequency: 50HZ

Input operation specification:

  • 230 VAC (-10% / + 6%)

in.therm.ce rating:

  • Voltage: 230-240 VAC

  • Power output: 3.8 kW (16 A maximum @ 240 VAC)

  • also available: 2.0 kW (8.3 A maximum @ 240VAC)

  • Frequency: 50 Hz

  • Heater element: 17A resistive (240 VAC only)

  • Flow rate: Minimum of 18 GPM is required

Output Voltage Maximum current Typical device
output 1 230 v 15 FLA pump 3
output 2 230 v 15 FLA pump 2
output 3 230 v 15 FLA pump 1
output 4 230 v 6 FLA general purpose
output 5 230 v 6 FLA blower
output 6 230 v 6 FLA Circulation pump
output 7 230 v 6 FLA ozone generator
output 8 230 v 6 FLA audio/video device

Important:

  • 48 A (3 x 16 A) absolute maximum, distributed on all outputs

  • 16 A maximum total for heater and OUT 1 combined

  • 16 A maximum total for OUT 2 and OUT 4 & OUT 5 combined

  • 16 A maximum total for OUT 3 to OUT 6 & OUT 8 combined

  • Maximum loads are determined by fusing restrictions and ambient temperature. In all output configurations,
    the total current output must never exceed input ratings.

L1 Light, 1 A / 9,5 VAC (-5%/+10%) @ 230 VAC / 50Hz
CO Communications port *
C1 Top side controller *
C2 Top side controller **
IO General purpose I/O port **
* C1 and CO: 125 mA max on 5 Volts.
** C2 and IO: 125 mA max on 5 Volts.

Important:

  • All low voltage accessories use + 5Vdc and/or on + 12 Vdc.

  • All low voltage accessories combined: 300 mA max, on + 12 Vdc.
